HQ600-S-8P CNC Copper busbar punching machine Australian

Product: CNC Copper Busbar Fabricator(High-Speed)

Serial: HQ600-S-8P

Primary Function:

High-capacity automated punching and shearing for heavy-duty copper and aluminium conductors. Specifically engineered for the Australian electrical switchboard and power distribution sectors, ensuring millimetre precision for AS/NZS compliant installations.

Core Features & Australian Market Advantages:

The LTMC HQ600-S-8P is a premiumBusbar Processing Machinedesigned to meet the rigorous demands of Australian industrial workshops. This unit integrates high-speed punching and shearing within a single automated workflow, significantly reducing manual handling for switchboard builders.

Equipped with a straight-column die frame housing 8 punching stations and 1 shearing station, the system guarantees perfect concentricity of the upper and lower dies. This alignment is critical for maintaining tool longevity and edge quality when processing high-conductivity Australian copper.

The integration of a German Beckhoff CNC control system and advanced CAD/CAM software allows for direct DXF file imports. This enables Australian engineers to move from design to fabrication instantly, ensuring that complex hole patterns and slot arrays are executed with 0.1mm accuracy.

The shearing unit features a unique single-pole mechanism that ensures zero material waste—a vital cost-saving feature for workshops dealing with high-priced copper stock. For local manufacturers looking to scale, this machine provides a massive daily throughput of several tonnes.

Technical Specifications (Metric Standard)

Industrial Component Breakdown:

• Drive System: 6-Axis Motion System using German Rexroth Servo Motors.

• Main Power: High-efficiency Swiss ABB Motor.

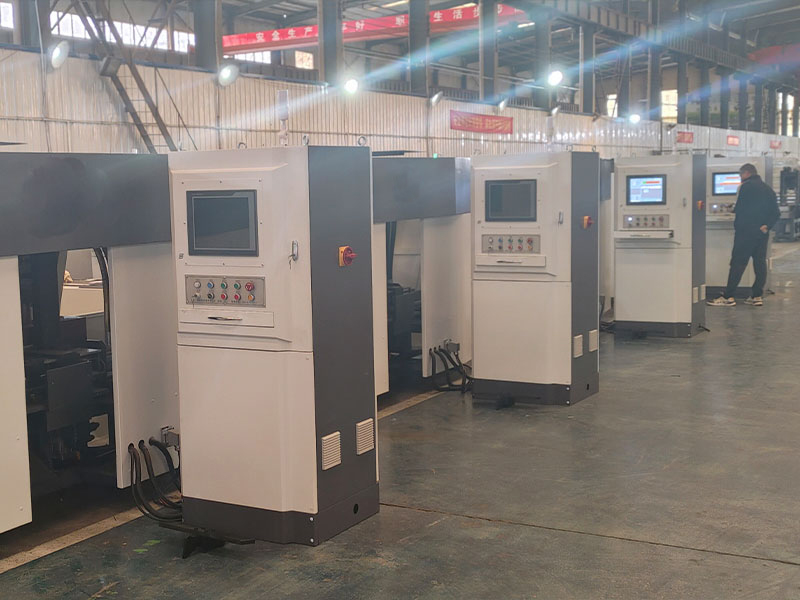

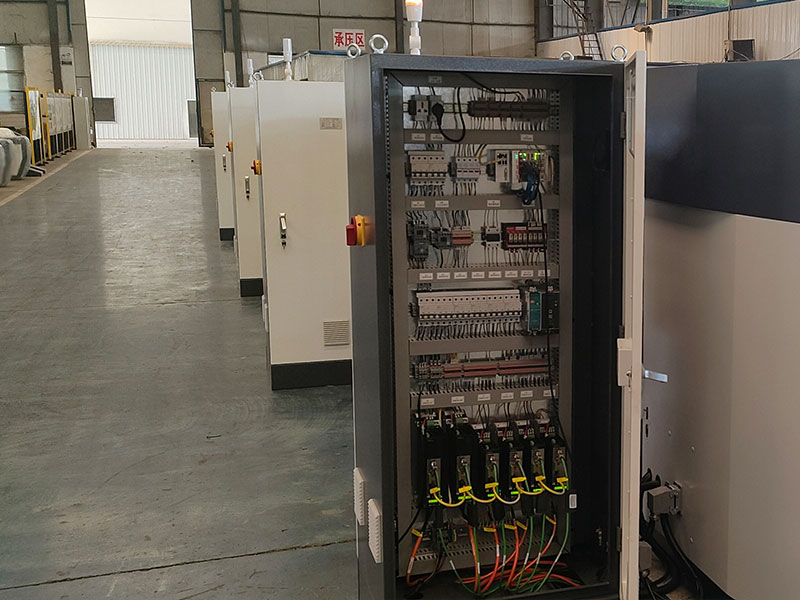

• Control Architecture: Beckhoff (Germany) Closed-loop CNC System.

Visual Information & Production Capabilities:

Australian Industry Video: CNC Busbar Fabrication in Action

Australian Market FAQ – HQ600-S-8P CNC Busbar Fabricator

1. Why is the HQ600-S-8P ideal for Australian Switchboard Builders?

It is specifically designed for the high-volume production of copper and aluminium busbars used in local electrical switchgear and distribution boards. The 8-punch station layout allows for complex Australian standard designs to be completed without manual tool changes.

2. Does the machine meet Australian precision standards?

Yes. With a positioning accuracy of 0.10mm per 500mm and a German Beckhoff closed-loop control system, it ensures all fabrication meets strict AS/NZS electrical compliance for hole alignment and spacing.

3. What is the maximum busbar size it can handle for industrial projects?

It can process heavy-duty busbars up to 6000mm in length, 200mm in width, and 15mm in thickness—covering the vast majority of Australian industrial and mining requirements.

4. How does the CAD/CAM integration benefit local drafting offices?

The system supports DXF imports. Australian workshops can send drawings directly from the engineering office to the factory floor, enabling automatic programming and reducing human error.

5. What provides the hydraulic power for heavy copper shearing?

The unit features a Swiss ABB motor delivering 600KN of hydraulic pressure, ensuring clean, burr-free cuts even on 15mm thick copper sections.

6. Is technical support available for Australian customers?

We provide comprehensive support, including remote diagnostics via the Beckhoff system and full documentation compliant with Australian safety standards. Spare parts like punch dies and shearing blades are readily available.
