HQ600-S-7P CNC Copper Busbar Fabricator (Punching & Shearing)

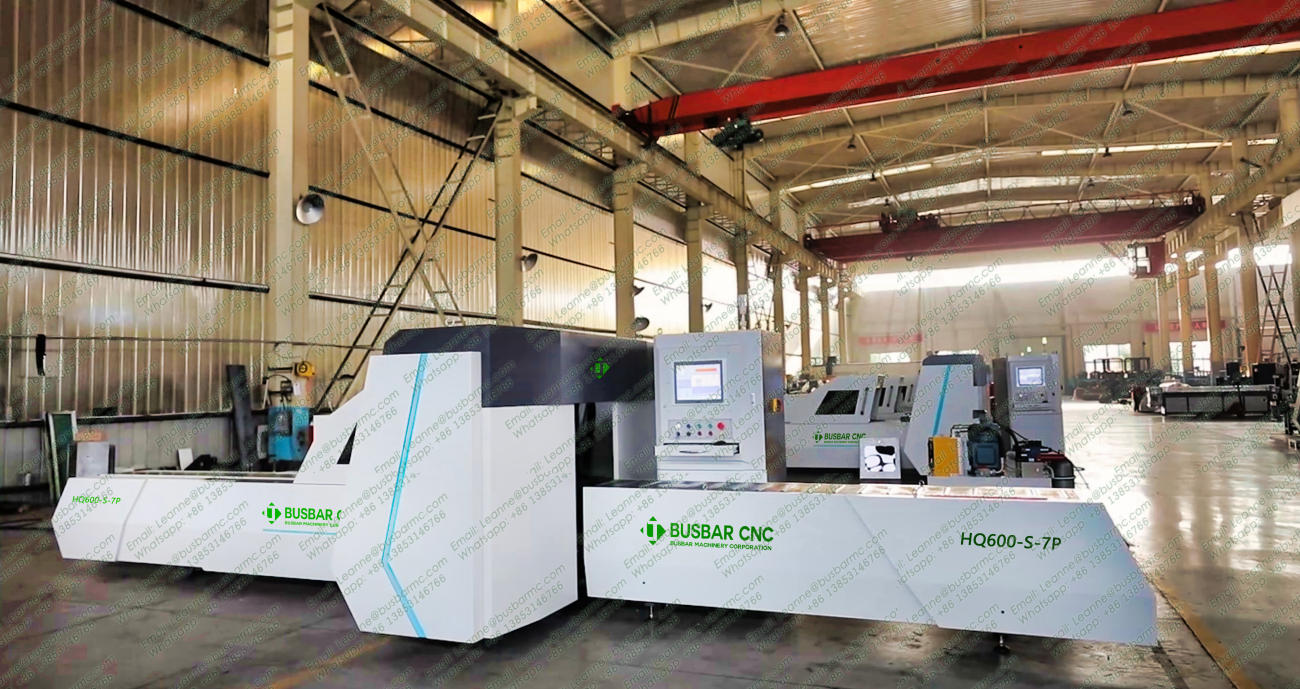

The LTMC HQ600-S-7P is a heavy-dutyCNC Busbar Fabricatorspecifically engineered for the Australian electrical manufacturing sector. This high-performance system integrates precision punching, shearing, and embossing into a single automated workflow. The HQ600-S-7P adopts a robust straight-column mold frame featuring a 7-station punching bank, 1 shearing station, and 1 embossing station. This configuration ensures perfect concentricity of the upper and lower dies, even under the heavy-duty cycles typical in Australian industrial switchboard fabrication.
Equipped with a world-class CNC control system and advanced CAD/CAM integration, thisBusbar Processing Machinesignificantly boosts production efficiency for local workshops. For the latest busbar fabricator prices and lead times across Australia, contact our team today.
LT Busbar Fabricator Demonstration Videos:
Industrial Fabrication Gallery:
HQ600-S-7P CNC Copper Busbar Fabricator Specifications
| Model | HQ600-S-7P |
| Maximum Force | 600KN |
| Feeding Station Size | 3000x500mm |
| Discharge Station Size | 2500x500mm |
| Maximum Plate Size | 6000x200x15mm |
| Maximum Processing Thickness | 15mm |
| Maximum Processing Width | 200mm |
| Maximum Punching Diameter | Ø4.3-Ø55mm |
| Maximum Number of Cutting Dies | 1 |
| Maximum Number of Punching Dies | 7 |
| Maximum Number of Embossing Mold | 1 |
| X-Axis Maximum Travel | 2000mm |
| X-Axis Accuracy Error | 0.10/500mm |
| Y-Axis Maximum Travel | 960mm |
| Y-Axis Accuracy Error | 0.10/500mm |
| Z-Axis Maximum Travel | 310mm |
| X-Axis Maximum Positioning Speed | 75m/min |
| Striking Cylinder Stroke | 45mm |
| Number of Control Axes | 6 |
| Dimensions (LxWxH) | 10500x2750x1800mm |
| Weight | 6700kg |
High-Performance Features:
Integrated Die Library: 7 Punching + 1 Shearing + 1 Embossing Stations.
The single-row die bank design incorporates 7 punching molds, 1 shearing mold, and 1 embossing mold in precise linear alignment. This ensures superior concentricity across allIndustrial Busbar Fabricatoroperations. While maintaining a high output efficiency (40m/min), the system achieves a precision tolerance of 0.1mm/500mm, meeting the tight requirements of Australian electrical infrastructure projects.
Advanced Servo Motion Control (6-Axis System) with 75m/min X-Axis Efficiency.
Our 6-axis motion system utilises premium servo servers and motors to deliver elite control accuracy. The system features dual servo clamps (X1 at 110mm stroke, X2 at 2000mm stroke), designed to minimise feed strokes and maximise discharge speed. Under operational load, it reaches 75m/min, with no-load speeds up to 150m/min, ensuring rapid turnaround for high-volume switchboard orders.
Swiss ABB Motor & German Beckhoff/Rexroth Integration.
Power is supplied by a Swiss ABB motor, delivering a constant 600KN of hydraulic pressure for smooth shearing of 15mm thick copper bars. The control architecture relies on the German Beckhoff system, offering superior closed-loop control and anti-interference capabilities compared to open-loop alternatives. With German Rexroth servo technology, Australian owners benefit from lower maintenance costs and higher operational stability.
